ANTENNA PRODUCTS CORPORATION BDP-230/430

GENERAL DESCRIPTION


OMNIDIRECTIONAL, VERTICAL POLARIZATION, BROADBAND - BDP-230/430

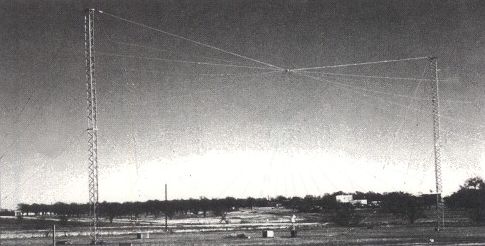

photo Antenna Products Corporation BDP-230/430 Applications

The BDP series HF broadband dipole antennas provide excellent performance over short to medium range circuits. The antenna radiation pattern has a high take-off angle at the lower frequencies for short range communication circuits and lower take-off angles at the higher frequencies for medium range communication circuits.

Features

The BDP series HF broadband antennas are designed to permit efficient operation without the use of a tuner. The broadband characteristics of the antenna are achieved without the use of resisitive loading, simplifying the overall antenna construction. Two bolted aluminum towers support the alumoweld radiating antenna dipole element.

TECHNICAL SPECIFICATIONS
MODEL
BDP-230 BDP-430
Frequency Ranges
2 - 30 MHz 4 - 30 MHz
Power Ratings /1 1 kW avg/2 kW PEP 1 kW avg/2 kW PEP
/2 10 kW avg/20 kW PEP 10 kW avg/20 kW PEP
Input Impedance
50 ohm unbalanced 50 ohm unbalanced
VSWR
2.5:1 or less 2.5:1 or less
Directive Gain
5 dBi 5 dBi
Polarization
Horizontal Horizontal
Input Connector /1 7/8" EIA 7/8" EIA
/2 1-5/8" EIA 1-5/8" EIA
Length
250 feet 140 feet
Width
150 feet 85 feet
Height
80 feet 45 feet
Wind Survival Rating
120 mph 120 mph
Specifications may change without notice

AZIMUTH RADIATION PATTERNS
Antenna Products Corporation BDP-230/430 azimuth radiation patterns

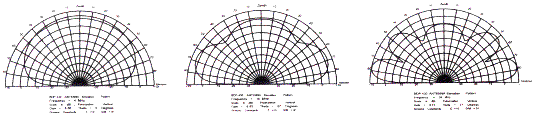

ELEVATION RADIATION PATTERNS
Antenna Products Corporation BDP-230/430 elevation radiation patterns
