ANTENNA PRODUCTS CORPORATION CMV-230/330/430

GENERAL DESCRIPTION


OMNIDIRECTIONAL, VERTICAL POLARIZATION, BROADBAND, CONICAL MONOPOLE - CMV-230/330/430

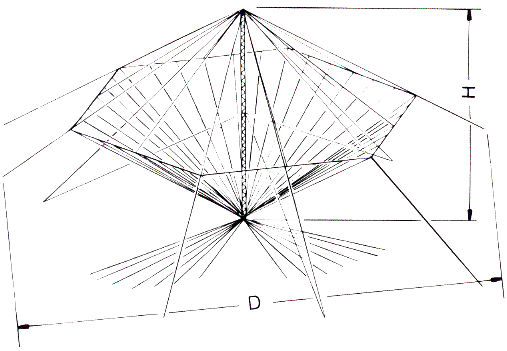

picture Antenna Products Corporation CMV-230/330/430 Applications

The CMV series are fixed station antennas suitable for short range groundwave circuits and medium to long range skywave circuits.

Features

Rugged design, built from materials which have good corrosion resistant properties and require little or no maintenance.

Characteristics

The antennas are broadband, omnidirectional, vertically polarized, conical and operate up to 15:1 frequency band.

Equipment Supplied

Prefabricated alumoweld curtain, bolted 6061-T6 aluminum tower, guys, base insulator anchors, ground screen, antenna coupler, and spare hardware.

Optional Equipment

Obstruction lights, erection kit, repair kit, and repair tool kit. Coaxial cable, connector adapters and mating adapters.

TECHNICAL SPECIFICATIONS
MODEL
230 330 430
Frequency Range
2 - 30 MHz 3 - 30 MHz 4 - 30 MHz
Maximum Height
114 ft 73 ft 58 ft
Diameter (D) 450 ft 290 ft 225 ft
Ground Screen Radius
110 70 ft 55 ft
Shipping Weight (lbs) 2,500 2,000 1,500
Shipping Volume
90 80 70
Military Nomenclature
AS-3186/FRC - -
Gain
5 dBi
Input Impedance
50 ohm unbalanced
VSWR
2.5:1 maximum
Power Capability /1 Type "N" 1 kW avg/2 kW PEP
/2 1-5/8"EIA 10 kW avg/20 kW PEP
/3 3-1/8"EIA 25 kW avg/50 kW PEP
Wind Loading
100 mph
Specifications may change without notice

ELEVATION RADIATION PATTERNS

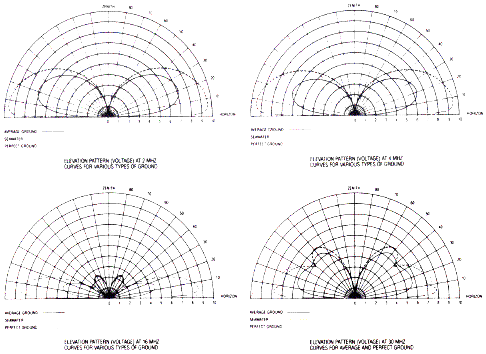

Antenna Products Corporation CMV-230/330/430 elevation radiation patterns
