ANTENNA PRODUCTS CORPORATION CMV-600

GENERAL DESCRIPTION


OMNIDIRECTIONAL, VERTICAL POLARIZATION, CONICAL MONOPOLE, MEDIUM AND LONG RANGE - CMV-600

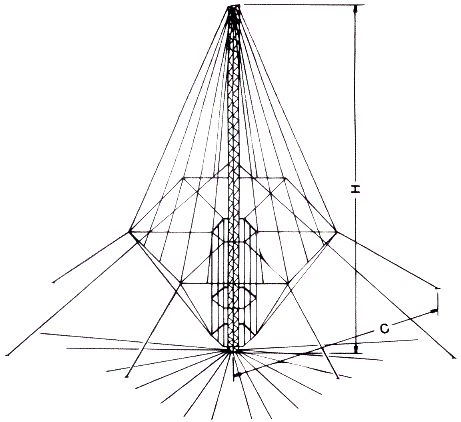

picture Antenna Products Corporation CMV-600 Applications

The CMV-600 series antennas are vertically polarized and are used on short range groundwave circuits and medium and long range skywave circuits.

Features

The antenna has a small footprint, requiring less real estate for installation. It is composed of corrosion resistant materials and low-maintenance components.

Characteristics

The CMV-600 series of conical monopoles have 6:1 bandwith and are available in 4 different frequency combinations.

Equipment Supplied

Prefabricated alumoweld curtain, bolted 6061-T6 aluminum tower, guys, anchors, ground screen, and antenna coupler.

Optional Equipment

Obstruction lights, erection kit, repair kit, and repair tool kit. Coaxial cable, connector adapters and mating adapters.

TECHNICAL SPECIFICATIONS
MODEL
602 603 604 605
Frequency Range
2 - 12 MHz 3 - 18 MHz 4 - 24 MHz 5 - 30 MHz
Maximum Height (H) 90 ft 60 ft 45 ft 36 ft
Curtain Guy Radius (C) 60 ft 45 ft 30 ft 24 ft
Ground Screen Radius
125 ft 82.5 ft 55 ft 45 ft
Shipping Weight (lbs) 1,800 1,600 1,400 1,200
Shipping Volume (cu ft) 70 65 69 55
Gain
4 dBi
Input Impedance
50 ohm unbalanced
VSWR
2.5:1 maximum
Power Capability /1 Type "N" 1 kW avg/2 kW PEP
/2 1-5/8"EIA 10 kW avg/20 kW PEP
/3 3-1/8"EIA 25 kW avg/50 kW PEP
Wind Loading
120 mph, no ice
90 mph, 1/2" ice
Specifications may change without notice

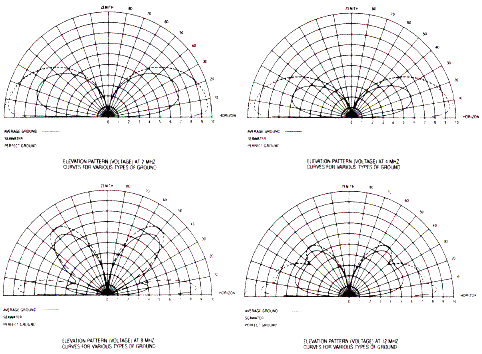

ELEVATION RADIATION PATTERNS
Antenna Products Corporation CMV-600 elevation radiation patterns
