ANTENNA PRODUCTS CORPORATION LMV-0200/2900

GENERAL DESCRIPTION


LONG RANGE, VERTICAL POLARIZATION, MONOPOLE LOG PERIODIC, STEERABLE BEAM - LMV-0200/2900

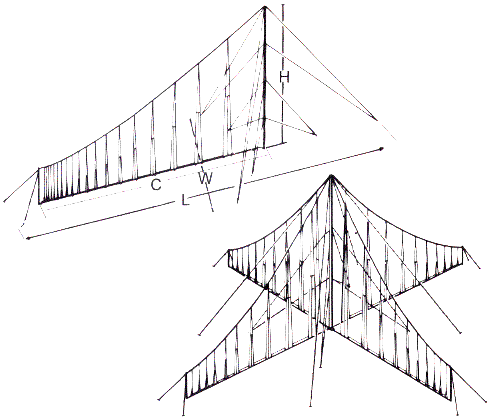

picture Antenna Products Corporation LMV-0200/2900 Applications

The LMV-0200/2900 series antennas are fixed station, vertically polarized, log periodic monopole antennas suitable for short range groundwave circuits and mediums to long range skywave circuits in the 2-30 MHz frequency band.

Features

The antenna series is a multi-stranded array utilizing corrosion resistant materials and components requiring low maintenance. It also utilizes a smaller footprint for use where space is a consideration.

Characteristics

The LMV-2900 series utilizes independent LMV-0200 series curtains arrayed in a rosette configuration distributed around a single support tower. The antenna series provides independent sector coverage.

Equipment Supplied

Prefabricated alumoweld curtain, bolted 6061-T6 aluminium tower, guy wires, front pole guys, anchors, copper ground screen, spare hardware, and impedance matching transformer.

Optional Equipment

Galvanized welded steel tower, wood pole, obstruction lights, ladder, climbing devices, erection kit, repair kit and repair tool kit. Coaxial cable, connector adapters and mating adapters.

TECHNICAL SPECIFICATIONS
MODEL
0205 0207 2905 2907
Frequency Range
2.5 - 30 MHz 3.5 - 30 MHz 2.5 - 30 MHz 3.5 - 30 MHz
Maximum Height (H) 144 ft 100 ft 144 ft 100 ft
Length (L) 392 ft 278 ft 542 ft 410 ft
Width (W) 218 ft 156 ft 542 ft 410 ft
Curtain Length (C) 230.8 ft 165 ft 230.8 ft 165 ft
Shipping Weight (lbs) 6,500 5,000 20,000 15,000
Shipping Volume (cu ft) 200 150 700 600
Gain (Perfect Ground)
10 dBi
Gain (Imperfect Ground)
5 dBi over 1/4 wavelength monopole
Back and Side Lobe
14 dB minimum
Input Impedance
50 ohm unbalanced
VSWR
2:1 maximum
Power Capability /1
receiving to 1 kW avg/2 kW PEP
/2
10 kW avg/20 kW PEP
/3
25 kW avg/50 kW PEP
Wind Loading
120 mph
Specifications may change without notice

AZIMUTH RADIATION PATTERNS
Antenna Products Corporation LMV-0200/2900 azimuth radiation patterns

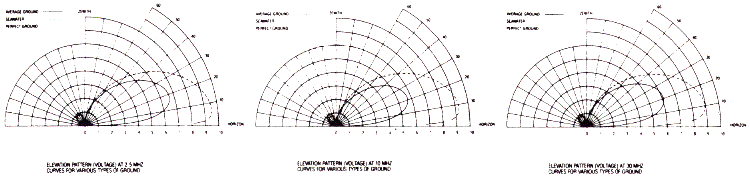

ELEVATION RADIATION PATTERNS
Antenna Products Corporation LMV-0200/2900 elevation radiation patterns
