ANTENNA PRODUCTS CORPORATION LPH-0500

GENERAL DESCRIPTION


MEDIUM RANGE, HORIZONTAL POLARIZATION, LOG PERIODIC ANTENNAS - LPH-0500

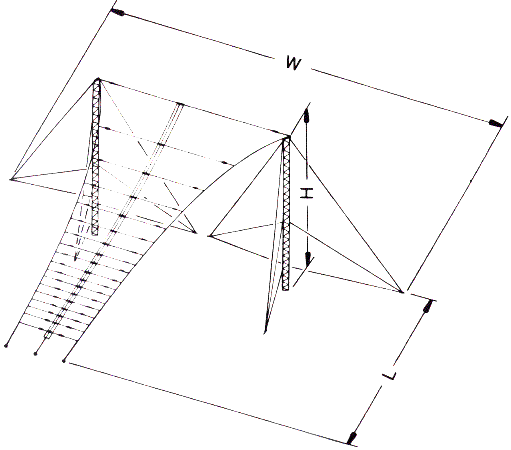

picture Antenna Products Corporation LPH-0500 Applications

The LPH-0500 series of horizontally polarized, fixed station, log periodic antennas are normally used for medium range communications in the 2-30 MHz frequency band.

Features

The LPH-0500 series has high gain and low VSWR. All RF connectors are galvanic compatible and well-rounded to minimize the possibility of corona at high power levels. Multiple antennas can share common towers in custom configurations.

Characteristics

The LPH-0500 series of antennas are broadband log periodic arrays, and will operate within the frequency range for each applicable model without any adjustment or tuning.

Equipment Supplied

Prefabricated alumoweld curtain, two bolted 6061-T6 aluminium towers, guy wires, anchors, balun and spare hardware.

Optional Equipment

Galvanized tower, balun transformer, obstruction lights, ladders, climbing devices, erection kit, repair kit and repair tool kit. Coaxial cable, connector adapters and mating adapters.

TECHNICAL SPECIFICATIONS
MODEL
0504 0506 0508 0511
Frequency Range
2 - 30 MHz 3 - 30 MHz 4 - 30 MHz 5.4 - 30 MHz
Maximum Height (H) 252 ft 170 ft 125 ft 100 ft
Length (L) 400 ft 268 ft 200 ft 148 ft
Width (W) 616 ft 412 ft 308 ft 228 ft
Shipping Weight (lbs) 7,300 5,700 4,200 3,200
Shipping Volume (cu ft) 150 120 90 80
Gain (Perfect Ground)
12 dBi
Back and Side Lobe
14 dB minimum
Input Impedance
50 ohm balanced
VSWR
2:1 maximum
Power Capability /1
receiving to 1 kW avg/2 kW PEP
/2
10 kW avg/20 kW PEP
/3
25 kW avg/50 kW PEP
Wind Loading
120 mph
Specifications may change without notice

AZIMUTH RADIATION PATTERNS
Antenna Products Corporation LPH-0500 azimuth radiation patterns

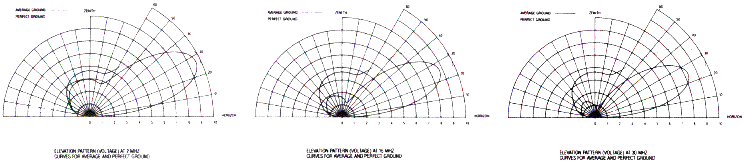

ELEVATION RADIATION PATTERNS
Antenna Products Corporation LPH-0500 elevation radiation patterns
