ANTENNA PRODUCTS CORPORATION VH-830/L

GENERAL DESCRIPTION


DIRECTIONAL, MEDIUM-LONG RANGE, HF SLOPING VEE - VH-830/L

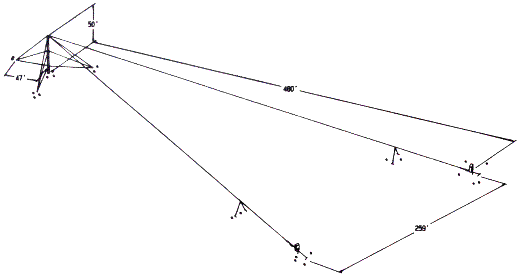

picture Antenna Products Corporation VH-830/L Applications

The VH-830/L Sloping Vee antenna is a directional, horizontally-polarized HF antenna, suitable for communications over medium- to long-range circuits.

Features

The antenna requires minimum time and cost for installation and features low-maintenance components.

Characteristics

The VH-830/L is used as a fixed station antenna. The operational frequency is extended to 2-30 MHz with reduced efficiency.

Equipment Supplied

Radiating elements, feedline, balun transformer, terminations, lattice tower, guys, and anchors.

Optional Equipment

Obstruction light, erection kit.

TECHNICAL SPECIFICATIONS
CHARACTERISTICS
Frequency Range
8 to 30 MHz
(2 to 30 MHz with reduced performance)
Input Impedance
50 ohm unbalanced
VSWR
2:1 maximum
Power Capability /1
receiving to 1 kW avg/2 kW PEP
/2
10 kW avg/20 kW PEP
Wind Loading
100 mph
Height (H) 50 ft
Width (Maximum) (W) 259 ft
Length (Maximum) (L) 527 ft
Shipping Weight (lbs) 400
Shipping Volume (cu ft) 20
Specifications may change without notice

ELEVATION RADIATION PATTERNS

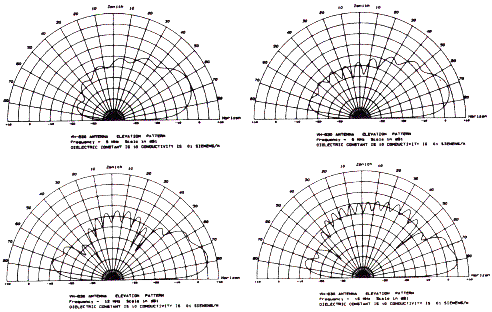

Antenna Products Corporation VH-830/L elevation radiation patterns
