RFS RADIO FREQUENCY SYSTEMS ADH SERIES

GENERAL DESCRIPTION


TUNABLE HORIZONTAL DIPOLE ANTENNAS - ADH SERIES, GROUND VERSION

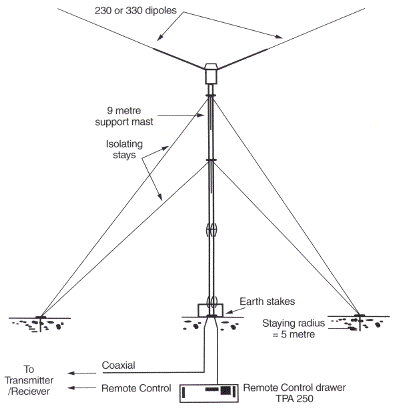

photo RFS Radio Frequency Systems ADH Series The ADH antenna is a horizontally polarized antenna fitted with an adaptive tuing mechanism.

Available in two frequency bands (2-30 MHz and 3-30 MHz), the antenna is mounted on a 9 metre high tubular mast.

A hinged mast base is incorporated enabling ease of installation and access to the adaptive tuning mechanism.

Up to 8 MHz the antenna is predominantly omnidirectional becoming bidirectional when operated between 8-30 MHz.

The ADH series operates in conjunction with a fully automatic remote control unit.

TECHNICAL SPECIFICATIONS
MODEL
ADH230 ADH330
Frequency Range (MHz) 2 - 30 3 - 30
VSWR (after tuning)
<1.5:1
Impedance (ohms) 50
Polarization
Horizontal
Azimuth pattern
omnidirectional ±2 dB for frequencies <8 MHZ
Bidirectional for frequencies >8 MHz
Rated Power Input
1 kW
Switching Time
20 mS
Remote Control Cable
28 pairs, armoured
Remote Control Location
approx. 500 mts
Wind Rating (km/hr) 160 200
Maximum Width (m) 16 12
Specifications may change without notice

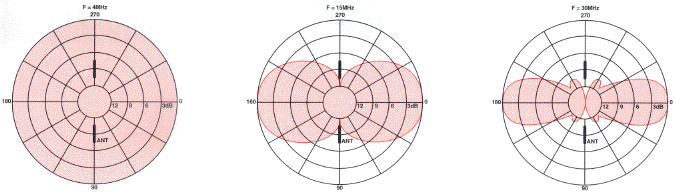

AZIMUTH RADIATION PATTERNS
RFS Radio Frequency Systems ADH Series azimuth radiation patterns

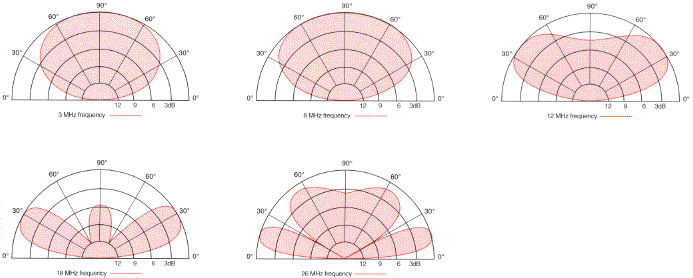

ELEVATION RADIATION PATTERNS
RFS Radio Frequency Systems ADH Series elevation radiation patterns


GAIN
RFS Radio Frequency Systems ANV45F gain

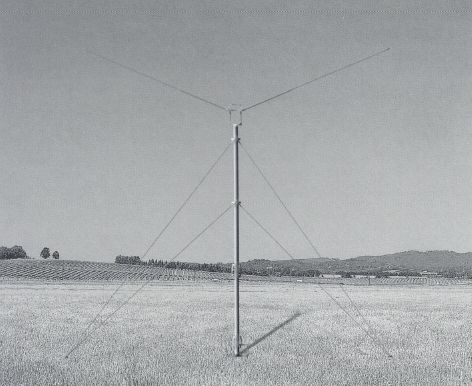

ANTENNA PICTURE
picture RFS Radio Frequency Systems ADH Series
