RFS RADIO FREQUENCY SYSTEMS HLS SERIES

GENERAL DESCRIPTION


HORIZONTAL LOG PERIODIC DIPOLE ARRAYS - HLS SERIES

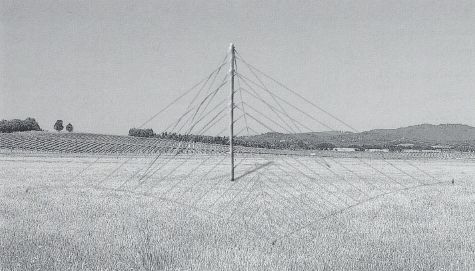

photo RFS Radio Frequency Systems HLS Series The HLS Series Log Periodics are directional, horizontally polarized antennas designed for short and medium range communications.

Characterised by a broad azimuth aperture (approximately 120°) the HLS provides high performance sector coverage.

The HLS antenna comprises a periodic alignment of dipole elements configured from a balanced feed line and catenary combination.

Operation at 2 - 4 MHz is achieved by the development of a V-type antennas configuration within the array.

TECHNICAL SPECIFICATIONS
MODEL
HLS230 HLS430
Frequency Range (MHz) 2 - 30 4 - 30
Polarization
Horizontal
Power Rating-Average
1, 5, 10 kW
VSWR
Typically less than 1.8:1, Max. 2:1
Power Gain
2 to 4 MHz : 2 - 6 dBi 4 to 30 MHz : 10 - 11 dBi
Azimuth 3 dB Beam width (deg) 100°
Azimuth 4 dB Beam width (deg) 120°
Front/Back ratio (dB) >12
Mast Height (m) 24
Ground Dimensions (m) 96 x 70 96 x 55
Wind Rating
200 km/hr
Specifications may change without notice

AZIMUTH RADIATION PATTERNS
RFS Radio Frequency Systems HLS Series azimuth radiation patterns

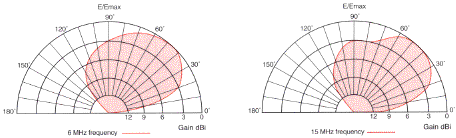

ELEVATION RADIATION PATTERNS
RFS Radio Frequency Systems HLS Series elevation radiation patterns

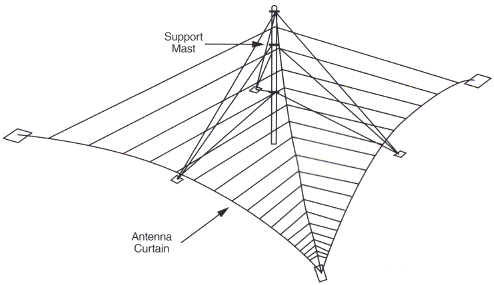

ANTENNA PICTURE
picture RFS Radio Frequency Systems HLS Series


ORDERING INFORMATION
Example Model
Input Power Always 0 Always 0
HLS430*100 HLS430 * 1 0 0




1 1000 W




2 5 kW




3 10 kW
